Prototype V1 Specs

From the very beginning it was clear that EsCargo was a concept that should be implemented right now. To prove this with outright certainty, a prototype had to be built. As with all prototypes it needs to be built quickly, simply and cheaply. It does not need to be “ready for production,” but merely a working example of the concept. Something that can be tested and refined in order to understand what a production model will require.

Components

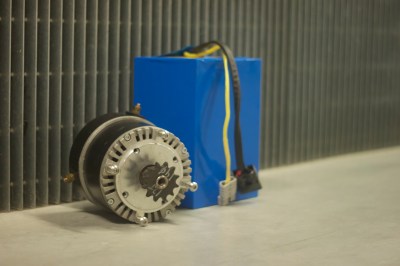

Motor

 Make & Model Motenergy ME0909
 Type High-Efficiency, Brushed DC
 Voltage 48v
 Power Output 5-12kW
 Torque 30Nm (est.)

Battery

 Type LiFePO4
Voltage 48v
Capacity 1kWh

IMG_6003

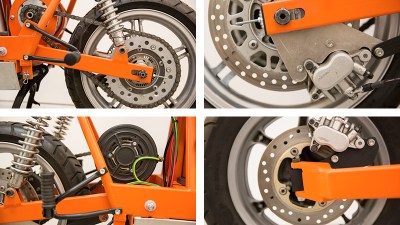

Brakes

 Front and Rear Single Disc

Suspension

 Front Mono shock
 Rear Twin Shock

Tyres

 Front 13″, 110 x 90
 Rear 15″, 130 x 70

EsCargo Progress folio84

Specs

Vehicle Weight 95kg
Wheelbase 1500mm
Seat Height 750mm
Frame Construction TIG welded mild steel
Body Panels Aluminium

20151107_1314

Performance

Range Est. 30 mins of moderate riding
Acceleration To be assessed
Cargo Capacity 150kg and 175L
Turning Circle To be assessed
Price per km To be assessed
